Clutch EH, EP, ER, EU

The Weber e-clutchings are among the most sold bicycle couplings on the market. In addition to thousands of times proven safety, the reason for this is above all the unbeatable operating comfort thanks to the patented bayonet closure system.

The coupling versions EH, EP and ER are special versions for certain requirements:
The EH coupling is for use on wheels with the Hebie rear stand type 661 with steel head.
The EP coupling is designed for use on wheels with Pletscher-Comp stand.
The ER coupling is designed for mounting on movable raw saffbroff dropouts.

The EU coupling is for use on special Ursus stand and Hebie rear stand FIX 663

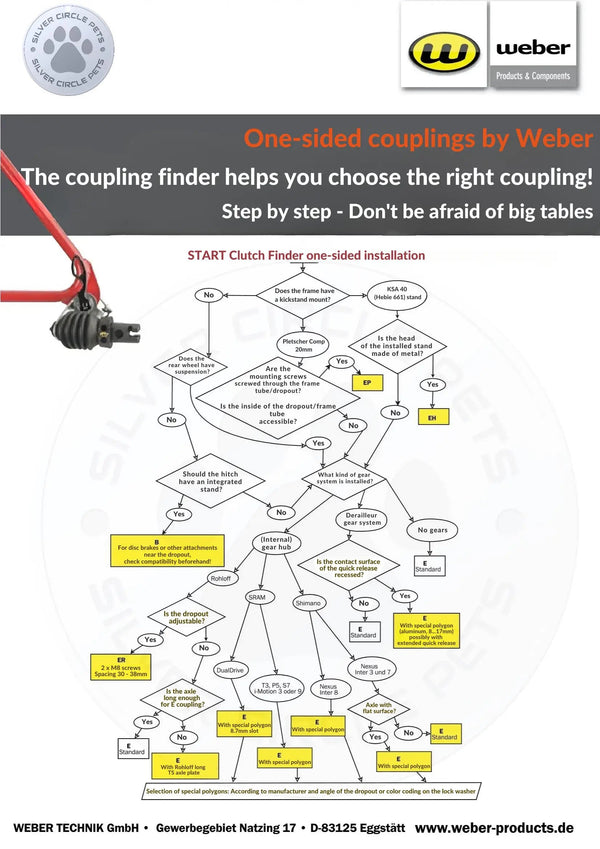

The Weber E-coupling was developed with the aim of suitable for every wheel, even with unusual or spring-loaded rear buildings. You can find out more here.

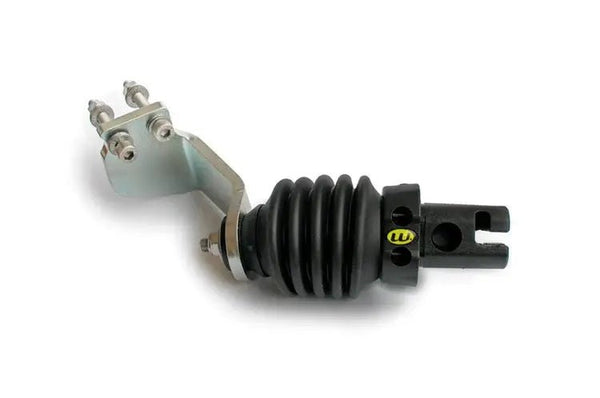

EP coupling

This special version of the E-coupling is suitable for use on wheels with Pletscher-Comp stand.

Features EP coupling

For load and child trailers (up to 80 kg)
Directly at Pletscher screw connection points together with stand attached
Weber bayonet closure
For all wheel sizes
Easy installation
Only high quality, non-stainless materials
Low weight (270 grams)

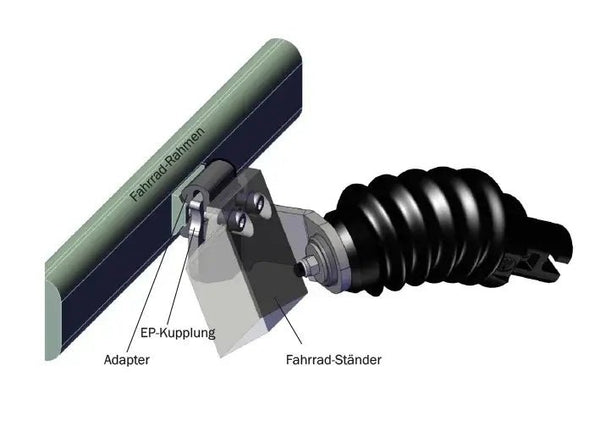

Installation on the bike EP coupling

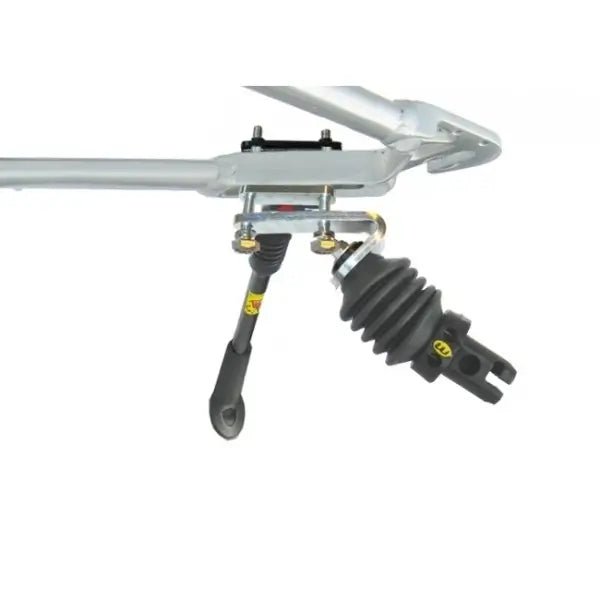

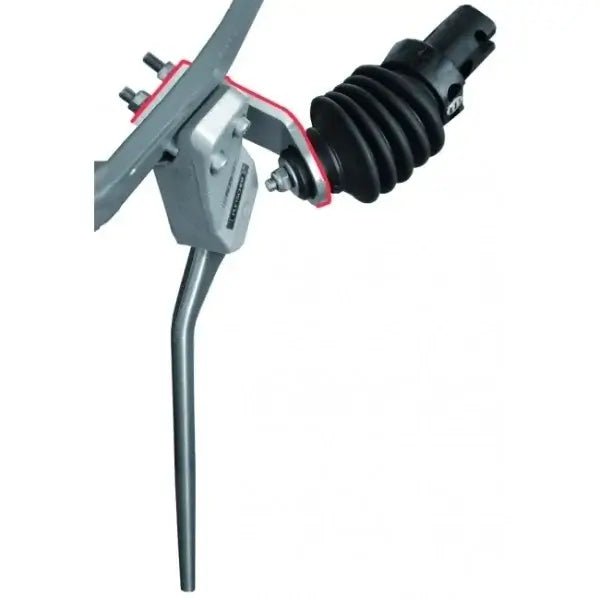

The coupling is screwed on from the inside to the frame tube, to the existing continuous holes of the Pletscher Comp stand (18mm hole spacing). The fixing screws of the stand are replaced by the screws included.

Important note:
If attachments on the bicycle frame do not allow the EP coupling to be added, an adapter is available for this!

Technical data EP coupling

Suitable for unbridled and braked bicycle trailers for cargo and child transport. Only for slow pedelecs up to 25 km/h. Not approved for motorized use! Not to be used for wheels made of carbon or with carbon dropouts and carbon rear construction triangle.

Zul. Total weight of trailer: up to 80 kg
A shot to static support load at the coupling point: up to 6.5 kg
Weight: 270 grams
Plastic materials: glass fibre reinforced polyamide
Metal materials: stainless steel, galvanized steel

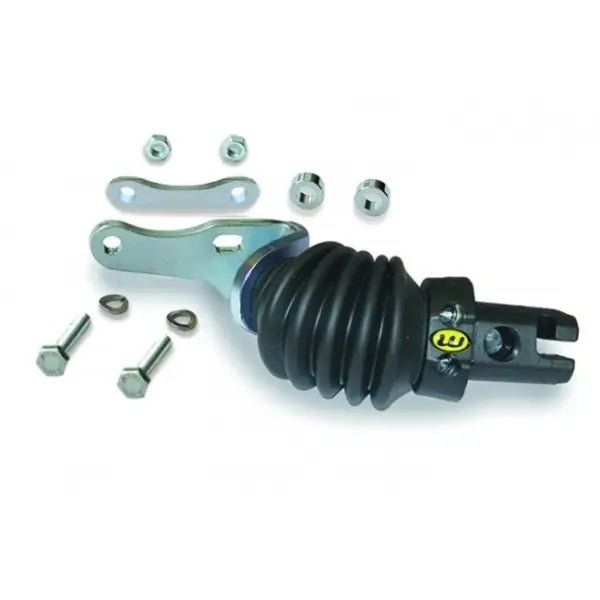

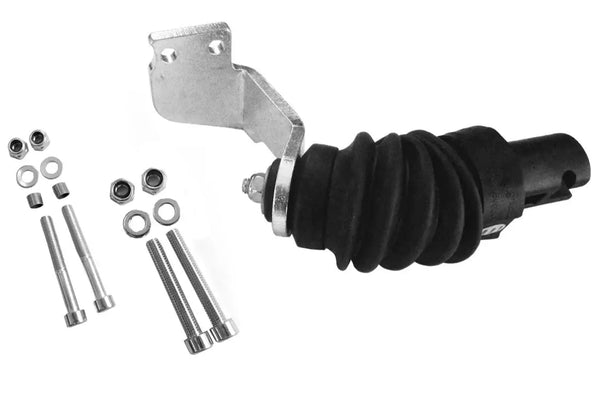

Scope of delivery EP coupling

EP coupling incl. Articulated piece
2 longer screws M5
4 blocking edges
2 nuts
EP mounting instructions
